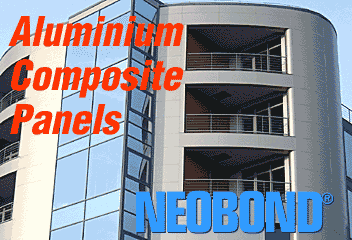

Composite aluminum panels consist of two
0.21 – 0.5 mm thick aluminum sheets with a polyethylene layer between them. One side of the panel has an extra durable PVDF or polyester (PE) coating. These panels are highly weatherproof. PVDF is a high quality chemically resistant coating used mostly for façade finishing, as well as in places with special quality and exterior requirements.
Sheets with polyester (PE) coating are used both for outdoor and indoor works – for manufacturing of advertising stands, signboards, constructions, as well as in interior design.

Thickness of panels - 3; 4 mm;
Sizes – 4.5 x 1.25 m;
3.2 x 1.25 m;
2.5 x 1.25 m
Max. size (custom order) -
5.70 x 1.57 m

Application:
- Finish of new buildings and renovation
(ventilated facades)
- Finish of walls, ceilings, and columns, construction of interior and light partition walls, etc.;
- Lining of gas stations;
- Manufacturing of advertising stands and signboards;
- Special structures.

Features:
- Light weight and increased durability;
- High level of heat and acoustic insulation;
- Weatherproof, operating temperature
-50°C - +80°C;
- Long-term maintenance free service of the material;
15-20 years (depending on panel coating);
- Flexibility of inner layer;
- No surface cracks when bending and forming;
- Fire-resistant;
- Easy construction and assembly of panels (cassettes);
- Simple finishing methods;

If different materials with similar stiffness are compared, Neobond composite material is 1.6 times lighter than aluminum and 3.3 times lighter than steel.




www.neobond.com

Colors>>
Perforation>>
Gallery>>
Aluminium profiles>>








NEOBOND Digital white polyester panel for digital printing on flat bed printer systems have excellent ink adhesion, it's flat surface and matte or high gloss (85%) coating give you opportunity to produce a photo-quality product.

Neobond Digital



Different materials with similar stiffness:

Panel thickness
Aluminium layer thickness
Weight
Sound isolation, Rw
Linear expansion coefficient
4mm
0,5mm
5,50kg/m2
24dB
0,0287mm/m/°C
3mm
0,3mm
3,86kg/m2
22dB
0,0285mm/m/°C
3mm
0,21mm
3,55kg/m2
20dB
0,0282mm/m/°C
